Dimension: 16000*3000*1700mm
Weight (KG): Max.80 tons
Axle: 2/3/4/5/6
King Pin: 90#
Landing Gear: JOST brand
Dimension: 16000*3000*1700mm
Weight (KG): Max.80 tons
Axle: 2/3/4/5/6
King Pin: 90#
Landing Gear: JOST brand

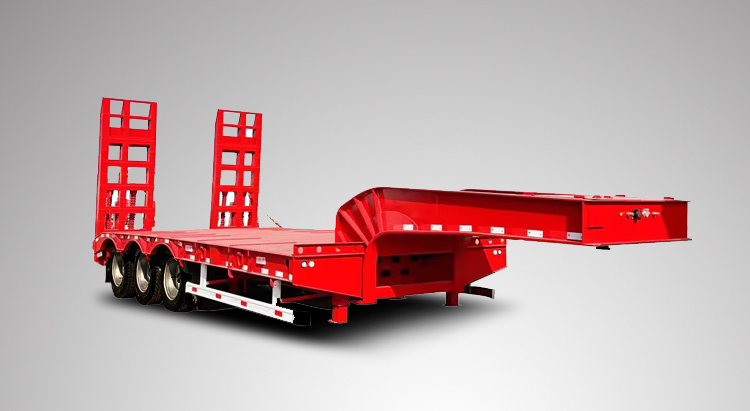

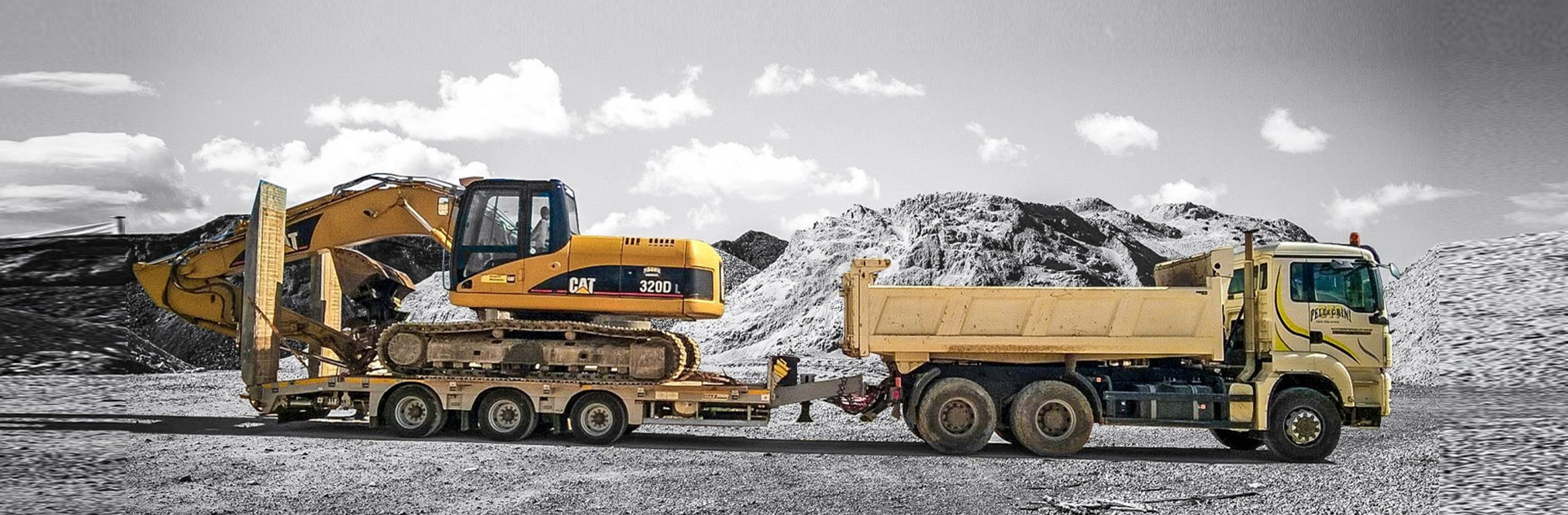

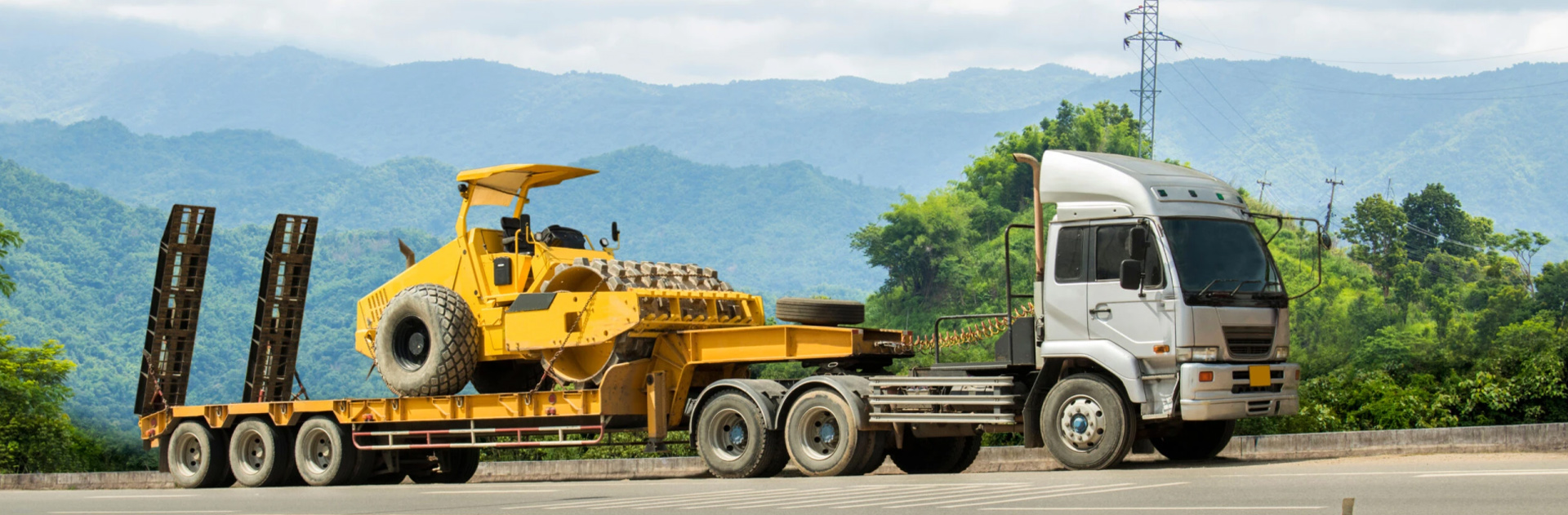

Heavy-Duty Design: The low bed design significantly reduces the ramp incline angle, facilitating the easy loading and unloading of tall and oversized equipment.
Flexible Tri-Axle Configuration: Offers superior load distribution, accommodating a diverse range of heavy and oversized cargo with ease.
Robust Construction: The “H” main beam design is crafted from 345B carbon steel, ensuring exceptional strength and durability.
|
Overall Dimension(mm)
|
13000x3000x1700mm
|
|||
|
Working Deck Dimension(mm)
|
9000x3000x1350mm
|
|||
|
Platform thickness(mm)
|
4mm
|
|||
|
Main Beam
|
“H”main beam design,345B carbon steel, the height of the beam is 500mm,
upper plate is 16mm,down plate is 18mm,middle plate is 10mm.
|
|||
|
Wheelbase
|
7,650mm+1,310mm+1,310mm
|
|||
|
Plyload
|
60,000kg
|
|||
|
Axle
|
3X13Ton,ZYbrand optional FUWA brand one hundred fifty thousand Kilometers no need maintenance
|
|||
|
Tire
|
1100R20,12pcs Taitong brand
|
|||
|
Rim
|
8.0*22.5 steel disc wheel,10 holes ISO,12pcs
|
|||
|
Suspension system
|
Common Mechanical Suspension
|
|||
|
Steel Spring
|
10/10/10 leaf spring with 90mm(W)*13mm(thickness)
|
|||
|
Brake air chamber
|
6 units T30/30 spring brake chambers
|
|||
|
Emergency relay valve
|
Wabco relay valve
|
|||
|
Traction/King Pin
|
2″and3.5″ removable Kingpin
|
|||
|
Landing Gear
|
28ton
|
|||
|
Tool box
|
1pcs,One crank and ont shaft head wrench
|
|||
|
Ramp
|
Heavy duty trailer ramp
|
|||
|
Spare theel carriers
|
2pcs
|
|||
|
bumper
|
Rear bumper
|
|||
|
Electrical system
|
1.Voltage; 21v 2.Receptacle;7 ways(7 wire hamess)
|
|||
|
Tail lamp with tum signal,brake light&reflector,side lamp etc.
|
||||
|
One set 6-core eletric cable protected by PVC conduit on main farme
|
||||
