Dimension: 11700*2500*3800m
Weight (KG): Max.80 tons
Axle: 2/3/4/5/6
King Pin: 2.0 or 3.5 inch
Landing Gear: JOST brand
Dimension: 11700*2500*3800m
Weight (KG): Max.80 tons
Axle: 2/3/4/5/6
King Pin: 2.0 or 3.5 inch
Landing Gear: JOST brand

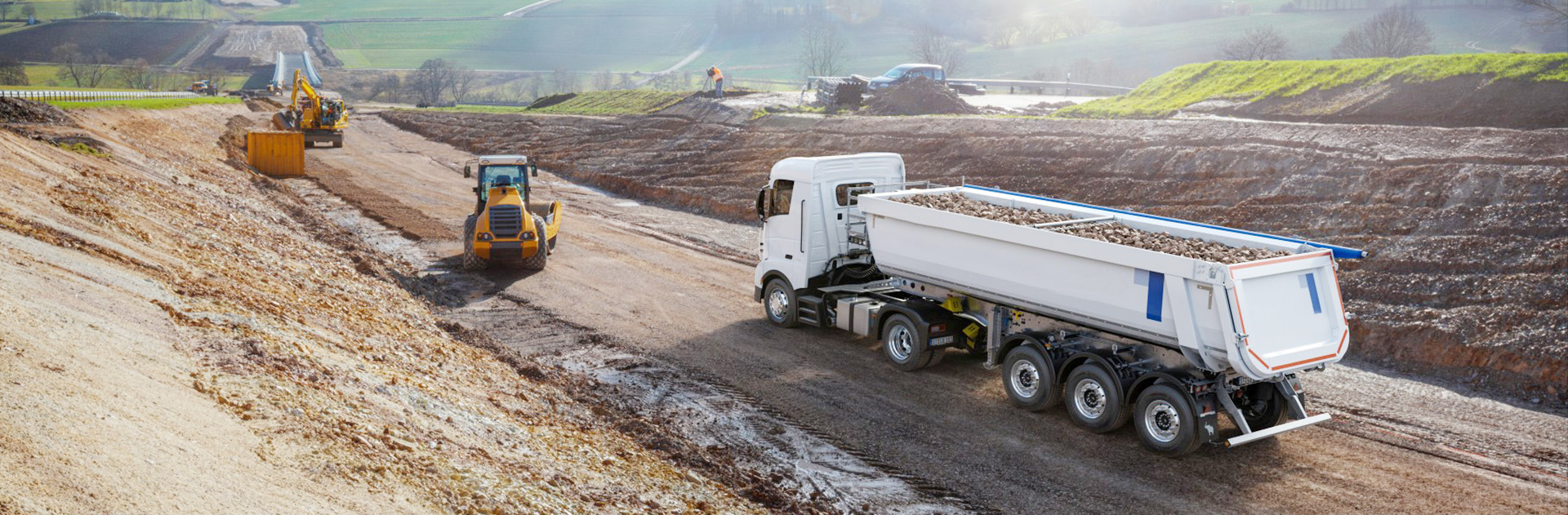

Sinotruck Dump Semi Trailer Truck For Sale, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T and heavier duty in long distance delivery, rough road situation.
Sinotruck Dump Semi Trailer body is made of high-quality steel, advanced technology and strict production technology. The structure of the Sinotruck Dump Semi Trailer is reasonable, reliable, easy to operate and beautiful. All parts are manufactured by famous manufacturers at home and abroad, and they are purchased, inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the vehicle.
Sinotruck Dump Semi Trailer chassis adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance.
The advanced software optimizes the design of the Dump Semi Trailer to meet the individual needs of customers.
The process tooling of flow operation ensures the excellent quality of Dump Semi Trailer.
| Dump Tipper Semi Trailer Specifications | |
| Outside Dimension | 11700x 2500x 3800mm |
| Payload | Max.80T capacity |
| Lifting System | HYVA brand oil cylinder 202 model |
| Main Beam | Q345B carbon steel, ‘H” type |
| Frame Beam(Heavy duty) | Upper and lower plate is 16mm and 18mm, Double middle is 10+10 mm. Height is 500 mm |
| Box thickness | Bottom plate:8mm Side plate:6mm |
| Axle | 4 axles 16tons BPW or FUWA |
| Landing Gear | JOST brand 28tons with two speeds |
| King Pin | 2.0 or 3.5 inch |
| Suspension | Mechanical suspension reinforced type |
| Leaf Spring(Strength) | 90mm(W)*16mm(T)*10 Layer |
| Tires | 12R22.5, 315/80R22.5 |
| Color/Logo | By customer demand |
On-demand customization, please leave a message for consultation
