Drive type: 8x4
Dimension (mm):10245×2496×3400
Max load (kg):30000
Emission:EURO2-5
Power:336-420hp
Drive type: 8x4
Dimension (mm):10245×2496×3400
Max load (kg):30000
Emission:EURO2-5
Power:336-420hp

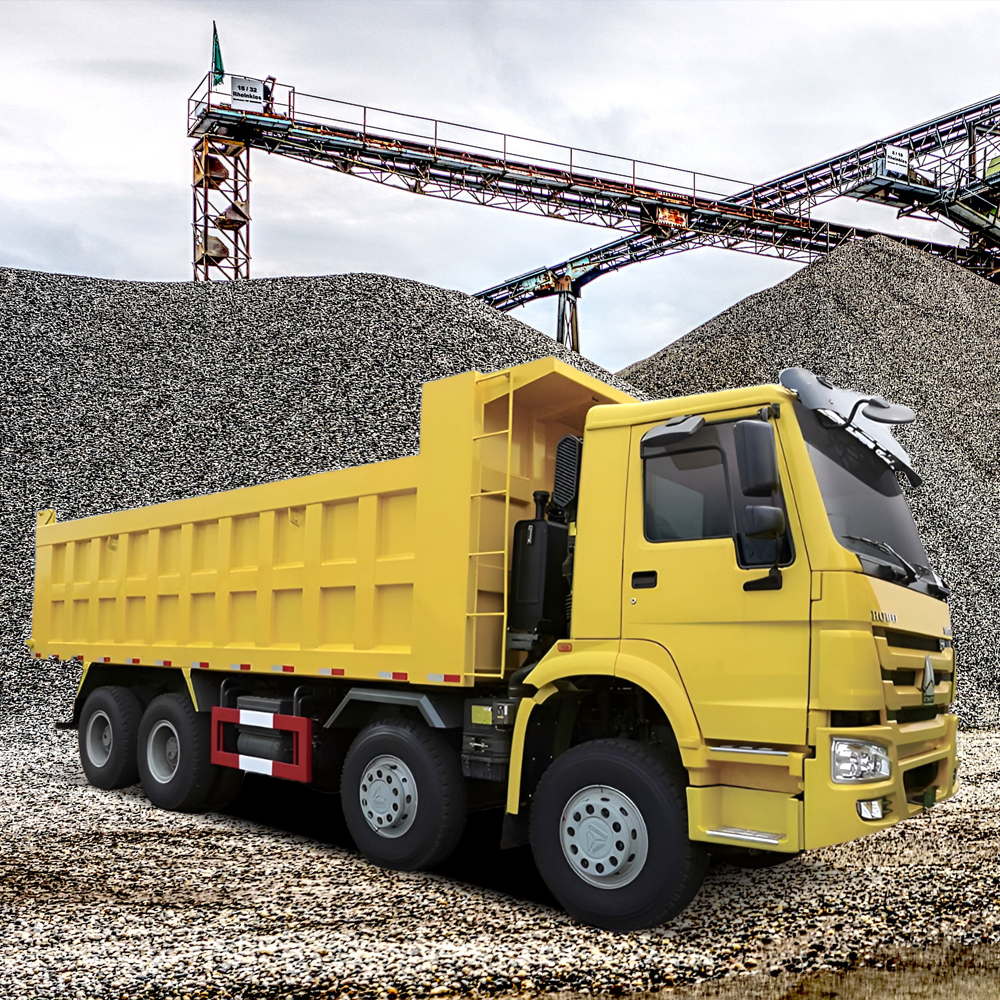

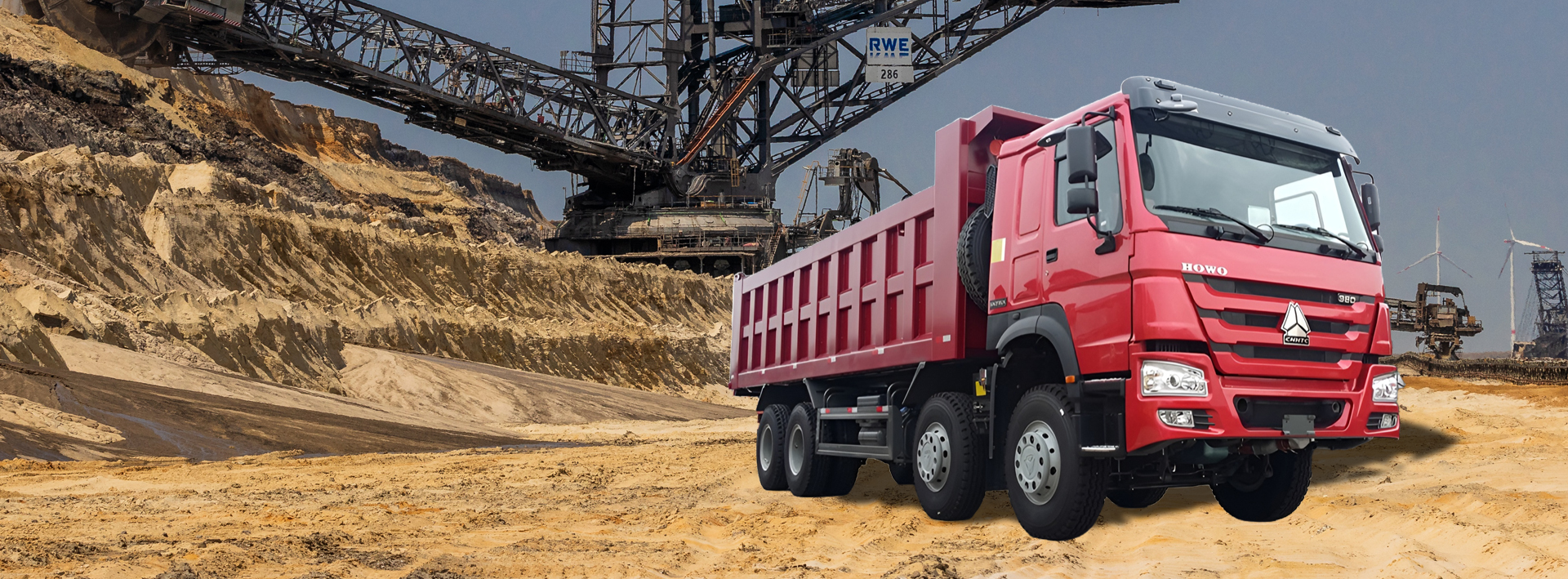

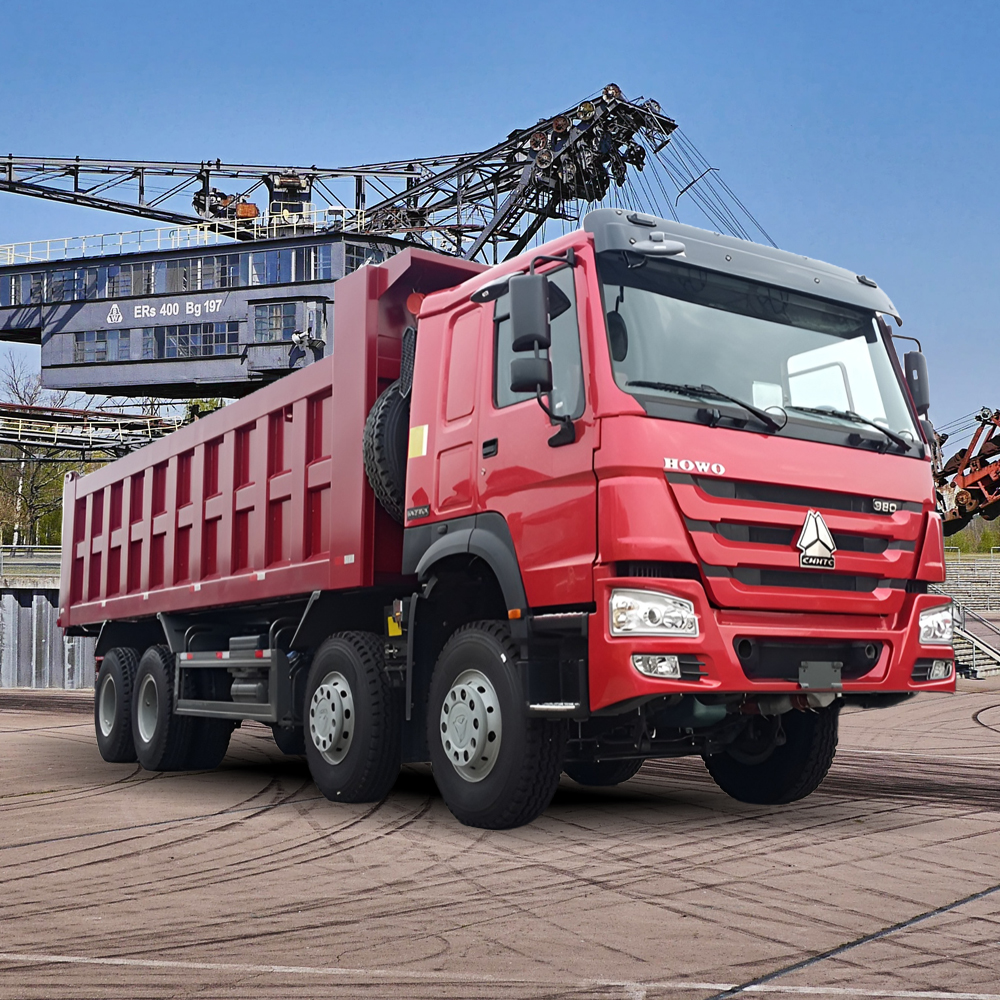

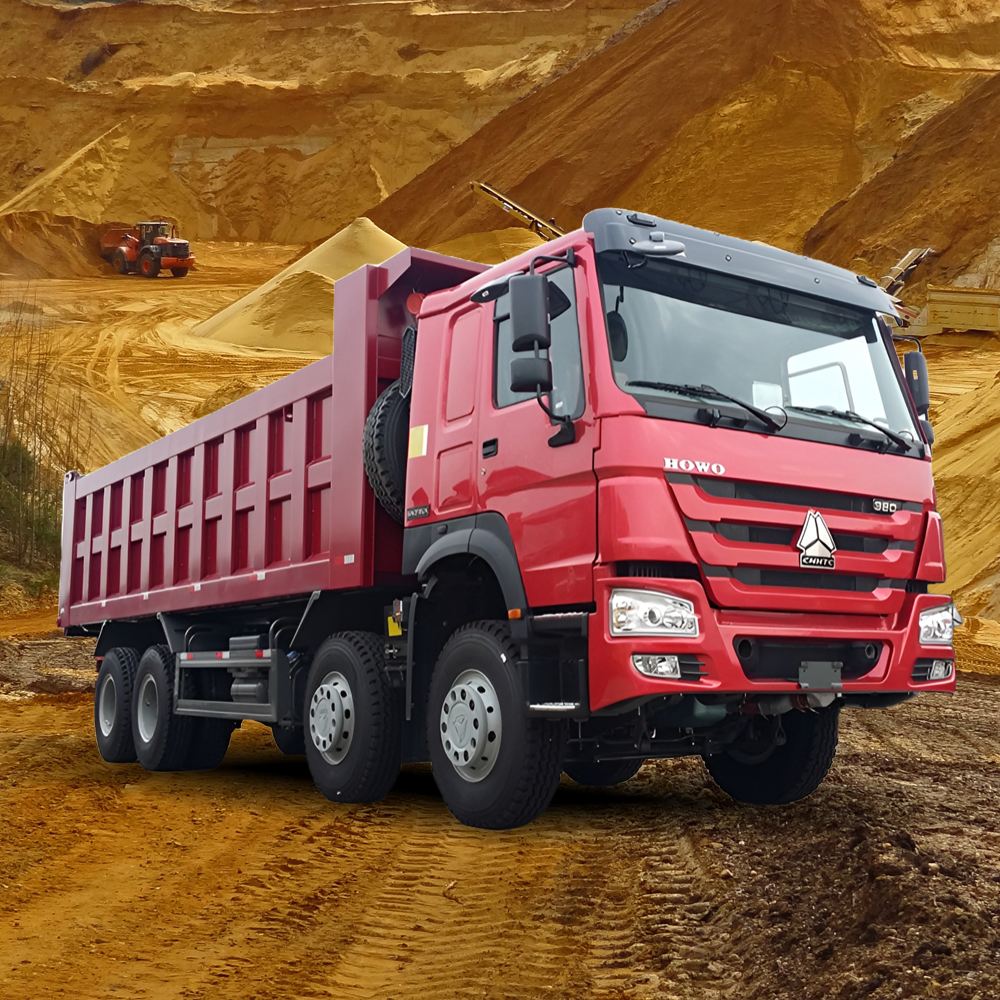

| Vehicle Model | HOWO 8X4 Dump Truck-22m³ |
| ENGINE | Model: WP12.400E201, Emission Standard: Euro II, 4-stroke diesel engine with direct fuel injection, 6 inline cylinders with water cooling, turbocharging, and intercooling, Maximum Power: 400 CV (294 kW) at 1900 rpm, Maximum Torque: 1800 Nm at 1000-1400 rpm, Specific Fuel Consumption: 189g/kWh, WABCO air compressor, Exhaust brake, Air filter, Thermostat with 71°C opening, Rigid fan |
| CLUTCH | Dry clutch with diaphragm spring, single disc, diameter 430 mm, hydraulic control with pneumatic assistance |
| GEARBOX | 9 forward gears and 1 reverse gear |
| FRONT AXLE | Rigid axle shaft with drum, Capacity 2x6000kg, German MAN technology |
| REAR AXLES | Floating axle with dual reduction and differential lock between wheels and axles, Capacity 2x10000kg, German MAN technology |
| FRAME | Frame: Parallel beam U-profile with section (heightwidththickness) of 30080(8+8) mm and reinforced under-frame with all cold-riveted cross members, Front suspension: 11-leaf semi-elliptical springs with double-action hydraulic telescopic shock absorbers and stabilizer, Mid suspension: 11-leaf semi-elliptical springs, Rear suspension: 12-leaf semi-elliptical springs, Fuel tank capacity (L): 400, Lockable fuel tank |
| STEERING | Steering assisted by BOSCH brand, hydraulic steering with electric assistance, adjustable column tilt and height with locking |
| BRAKES | Service brake: Compressed air dual circuit brake, Parking brake: Spring energy, air operating on rear wheels, WABCO ABS |
| TIRES | Tires: 12R22.5 without inner tube with a spare tire |
| DRIVER’S CAB | Long HW76 cabin, single berth, hydraulically tiltable to 55° forward, 2-blade wiper with three speeds, folding windshield with embedded radio antenna, adjustable rigid driver and passenger seat with heating and ventilation system, exterior sun visor, VDO stereo radio/cassette recorder, safety belts, adjustable steering wheel, horn, air conditioning with full 4-point suspension and transverse stabilizer |
| DIMENSIONS IN MM | Wheelbase (mm): 3200+1350, Total Length (mm): 9800, Width without mirrors (mm): 2550, Total Height (mm): 3450, Body Volume (m³): 22, Floor thickness/side (mm): 8 & 6 |
| WEIGHT IN KG | Payload capacity (kg): 34000, Empty weight (kg): 17000, Total authorized weight (kg): 32000 |
On-demand customization, please leave a message for consultation
