Model: WP12.400E201
Emission Standard: Euro II
Maximum Power: 400 HP (294 kW) at 1900 rpm
Maximum Torque: 1800 Nm at 1000-1400 rpm
Model: WP12.400E201
Emission Standard: Euro II
Maximum Power: 400 HP (294 kW) at 1900 rpm
Maximum Torque: 1800 Nm at 1000-1400 rpm

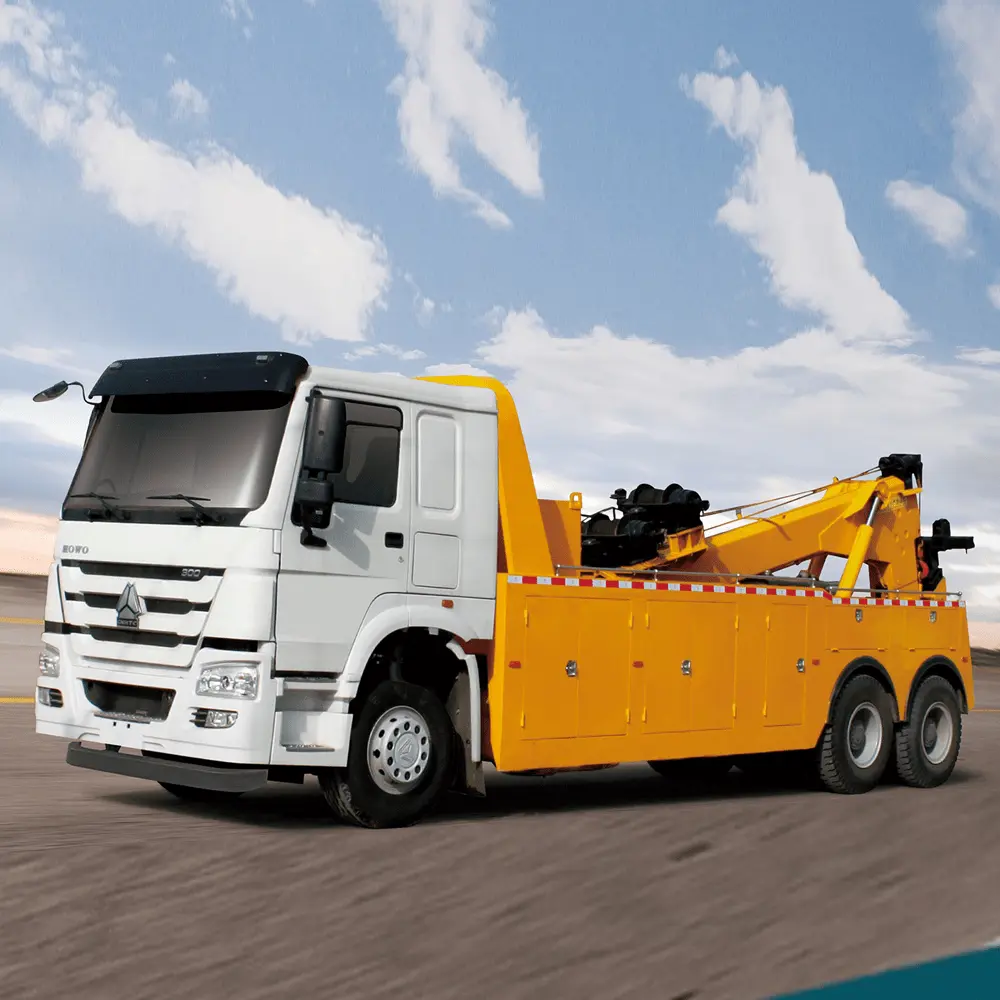

| Vehicle Model | HOWO 6X4 Tow Truck | |
| ENGINE | Model: WP12.400E201, Emission Standard Euro II Diesel engine with direct fuel injection, 4-stroke, 6-cylinder in-line, water-cooled, turbocharged, and intercooling Maximum Power: 400 HP (294 kW) at 1900 rpm Maximum Torque: 1800 Nm at 1000-1400 rpm Specific Fuel Consumption: 189 g/kWh WABCO air compressor With exhaust brake Air filter Thermostat with 71°C opening starts Rigid fan | |
| CLUTCH | Dry clutch with diaphragm spring, single disc, diameter 430 mm, hydraulic control with pneumatic assistance | |
| GEARBOX | 9 forward gears and 1 reverse gear | |
| FRONT AXLE | Rigid axle shaft with drum, Capacity 6000kg, German MAN technology | |
| REAR AXLES | Floating axle with dual reduction and differential lock between wheels and axles, Capacity 2X10000kg, German MAN technology | |
| FRAME | Frame: Parallel ladder frame with U-profile, section (heightwidththickness) of 30080(8*8) mm, and reinforced underframe with all cold-riveted cross members Front suspension: 10-leaf semi-elliptical springs with double-action hydraulic telescopic shock absorbers and stabilizer Rear suspension: 12-leaf semi-elliptical springs Fuel tank capacity (L): 400, lockable fuel tank | |
| STEERING | Steering: BOSCH brand assisted steering, hydraulic steering with electric assistance, adjustable column tilt and height with locking | |
| BRAKES | Service brake: dual-circuit compressed air brake Parking brake: spring energy, air-operated on rear wheels WABCO ABS | |
| TIRES | Tires: 12R22.5 without inner tube with a spare tire | |
| DRIVER’S CAB | Long HW76 cab, single berth, hydraulically tiltable to 55° forward, two-blade wiper with three speeds, folding windshield with built-in radio antenna, adjustable driver and passenger seats, with heating and ventilation system, external sun visor, VDO stereo radio/cassette recorder, safety belts, adjustable steering wheel, horn, air conditioning with 4-point fully floating suspension and transverse stabilizer. | |
| DIMENSIONS IN MM | Wheelbase (mm) | 5800 |
| Total length (mm) | 10800 | |
| Width overall (mm) | 2550 | |
| Total height (mm) | 3500 | |
| Maximum lifting capacity (kg) | 18000 | |
| Maximum towing capacity (kg) | 16000 | |
| WEIGHT IN KG | Payload capacity (kg) | 24000 |
| Empty weight (kg) | 17500 | |
| Total allowed weight when loaded (kg) | 26000 | |
On-demand customization, please leave a message for consultation
