Inicio Camiones Semirremolque SemirremolqueSinotruck 40ft Flatbed Semi Trailer Truck

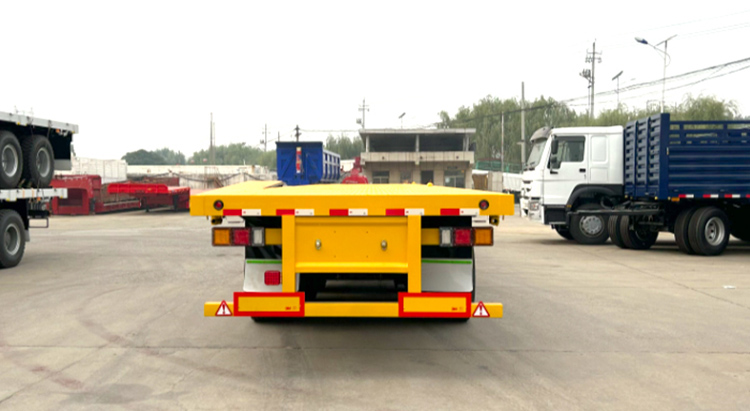

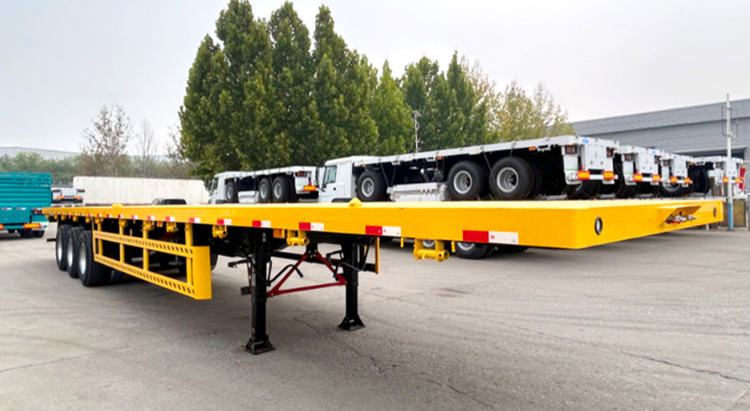

Sinotruck 40ft Flatbed Semi Trailer Truck

The Sinotruck Flatbed Semi Trailer Truck is a robust and adaptable solution for transporting a variety of cargo, including two 20-foot containers or one 40-foot container, as well as bulk goods. We offer a range of flatbed semi-trailer styles to suit different transportation needs, such as the 20ft container cargo carrier, 40ft flatbed, and 45ft flatbed semi-trailers.

Especificaciones rápidas

Dimensiones: 11700*2500*3800m

Peso (KG): Máx.80 toneladas

Eje: 2/3/4/5/6

King Pin: 2,0 o 3,5 pulgadas

Tren de aterrizaje: Marca JOST

Solicitud de precio WhatsApp

Descripción del producto

Aplicación

Specially designed for heavy good transportation

Características y especificaciones

Heavy-Duty Construction: Designed for the transportation of heavy goods, with a focus on strength and durability for long-distance and rough road conditions.

Garantía de calidad: The body is crafted from high-quality steel, utilizing advanced technology and strict production standards for reliability and ease of operation.

Customizable Design: The advanced software optimization allows for custom designs to meet specific customer requirements.

Dump Tipper Semi Trailer Specifications
Outside Dimension	11700x 2500x 3800mm
Payload	Max.80T capacity
Lifting System	HYVA brand oil cylinder 202 model
Main Beam	Q345B carbon steel, ‘H” type
Frame Beam(Heavy duty)	Upper and lower plate is 16mm and 18mm, Double middle is 10+10 mm. Height is 500 mm
Box thickness	Bottom plate:8mm Side plate:6mm
Eje	4 axles 16tons BPW or FUWA
Landing Gear	JOST brand 28tons with two speeds
King Pin	2.0 or 3.5 inch
Suspensión	Mechanical suspension reinforced type
Leaf Spring(Strength)	90mm(W)16mm(T)10 Layer
Tires	12R22.5, 315/80R22.5
Color/Logo	By customer demand

Personalización a petición, deje un mensaje para consultarnos

Rendimiento

Sinotruck Flatbed Trailers Truck is using the high strength steel marterial Q345 to make the main beam , which gives the semi flatbed trailer more strength to afford the weight.

High-Strength Material

The main beam is made from high-strength steel Q345, ensuring the semi flatbed trailer can bear significant weight.

High Load Capacity

With a 40-ton load capacity, this trailer is ideal for transporting heavy cargo, including containers.

Durable Construction

Built with high-quality materials for reliability and longevity during long-distance transportation.

Versatile

Capable of accommodating 20, 40, 45, and 48ft containers, offering flexibility for various cargo sizes.

Easy Loading and Unloading

The flatbed design facilitates efficient logistics operations with straightforward loading and unloading of cargo.
