Cabin: HW 76 cab
Engine : WD615.69
Gearbox: 10 Forwards gear & 2 reverse gear
قوة حصان المحرك: 336 حصان
Payload: 13750

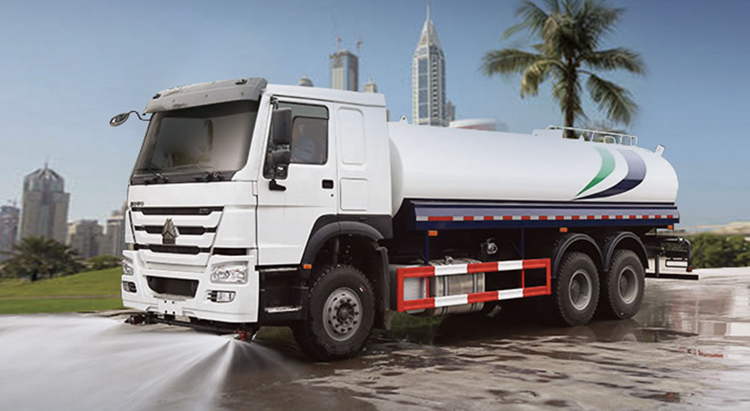

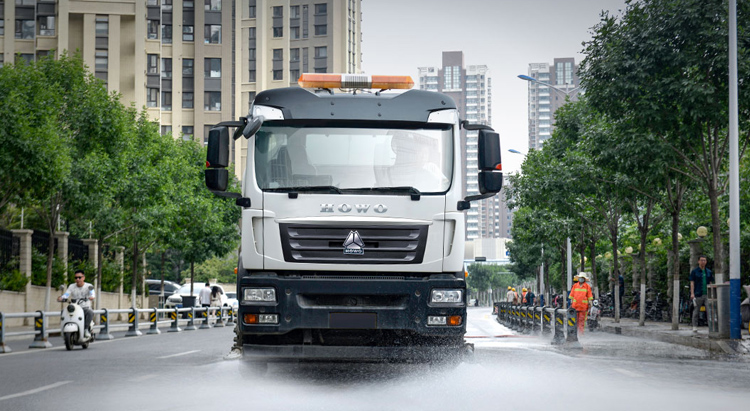

1. Front spray nozzle, wash road surface dust;

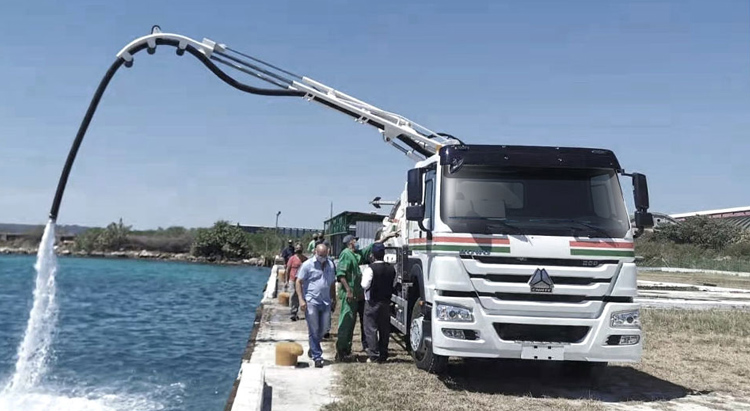

2. Water cannon,360 rotation, spray nozzle can be adjusted to the columnar or the vaporific, suitable forfire protection and irrigation;
3. Fire coupling, cooperate with fire hose, achieve function of emergency fire;
4. Water absorption system, equipped with special waterpump and filter system;
5. Rear and side spray nozzle, cquipped with rearworking platform.
| المقصورة | HW 76 cab, with one bed and air condition, | |
| 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11690× 2496× 3300 |
| قاعدة العجلة (مم) | 1800+ 4600+ 1350 | |
| Wheel track ( front/rear) (mm) | 2022/ 1830 | |
| Approach / Departure angle(°) | 16/19 | |
| الوزن بالكيلو جرام | الوزن الفارغ | 14000 （According to the volume ） |
| الحمولة | 13750 | |
| سعة تحميل المحاور الأمامية | 2×9000 | |
| سعة تحميل المحاور الخلفية | 2×16000 | |
| المحرك | العلامة التجارية | سينوتروك |
| الطراز | WD615.69 | |
| النوع | 4-stroke direct injection , | |
| 6-cylinder in-line, | ||
| turbo-charging and inter-cooling | ||
| Horse Power （HP) | 336 HP （According to the volume ） | |
| معيار الانبعاثات | Euro2 （Euro3,4 is optional ） | |
| علبة التروس | 10 Forwards gear & 2 reverse gear | |
| التوجيه | power steering ZF8098 from Germany | |
| الإطارات | 12.00-20 bias tyre （Optional ） | |
| Optional | 15,000 -25,000 liters, tank thickness is 4 mm, seal is 5 mm | |
| Equipped with front(rear,side)sprinkler(sprinkling width ＞14m ) | ||
| Equipped with rear working platform with water cannon (range ＞28m) | ||
| Equipped with pump(suction lift ＞6m) | ||
| Equipped with fire valve,water valve,and filter gauze | ||
التخصيص عند الطلب، يُرجى ترك رسالة للاستشارة
